Model:LD1600 Specifications:
Volume:2070X700X1200mm Weight:250kg
Description:

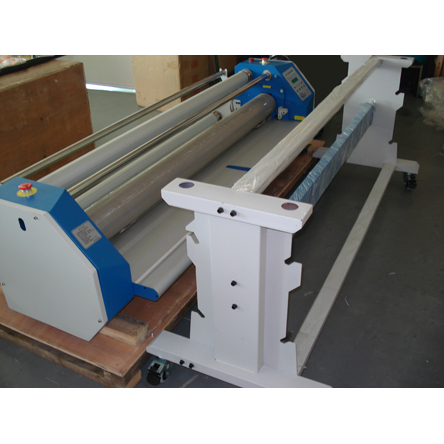

Hot laminator
Main characteristic:
1. Can overturn the front working table which is easy to maintain and fix machine, also save your place.
2. Can adjust and scroll the roll, this ensure the picture smooth and slippy, even for the thin adhesive can be done well.
3. Auto take up paper and adjust its degree of tightness which make the laminating nice.
4. The Passive Sent Membrane can adjust the Swelling Agencies to improve the membrane's scalability, the flat screen began from this.
5. Spare stand for the spare roll film,convenience for using.
6. Taken up the buttom film after it was laminating.
Specification :
1.Lower cost, improve quality;
You can save $0.22 for per square meter printing;
Good color reducibility, high brightness, without bubbles and snowflakes.
2.High efficiency laminating and high-yield;
The entire 50-meter media will not slant;
One man or unmanned operation can be achieved for laminating 220sq.m/h;
Thin selfadhesive is available and will be no wrinkle, and the deep color images can be laminated strongly.
3.Avaliable for low-temperature laminating;
Laminating at 50℃ can avoid bubbles and snowflakes;
Auto tear-off backing paper function;
One man or unmanned operation can be achieved for laminating 400sq.m/h
4.Wide range of application;
Suitable for the fields of indoor advertising, outdoor self-adhesive vinyl, graphic image, frameless pictures, etc.;
All the traditional cold laminating industry.
Model | LD1600HL | ||
Max Laminating Width | 1580mm | Warm-up Time | 10-15min |
Outter size | 2070X700X1200mm | Way of laminating | Automatic |
Adjust range of speed | 0-4m/min | Imput voltage(v) | 110V/220V 50HZ |
Max laminating thickness(mm) | 30mm | Way of adjust press | Linkage Regulator |
Imput power(w) | 2500 | Temperature range | Room-150℃ |
weight(kg) | 250 |
|
|
This machine can do hot lamination and cold lamination.
Use hot lamination film, it price is cheaper than cold lamination film, so it can save a lot cost than normal cold lamination.
