Mug machine

You are now the location > Index > Product

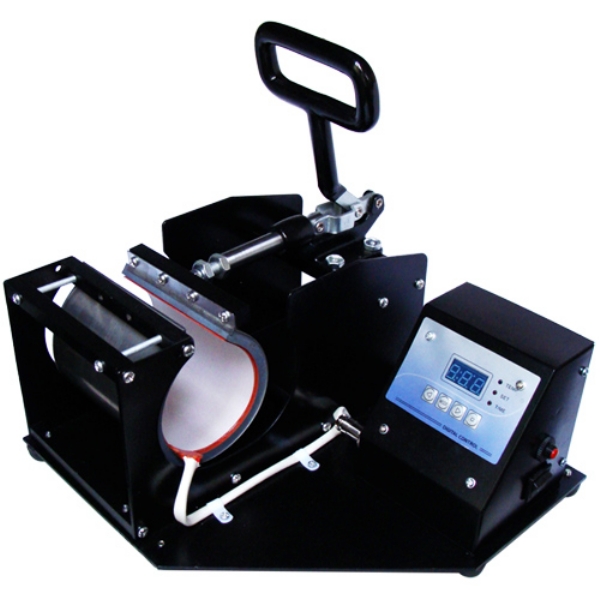

Digital Mug Press

Model:LDKB2 Specifications:
Volume:335*330*310mm Weight:9kg
Description:
Digital mug press

Specification

1.Light weight and portable, for use at malls, flea markets, shows, and more.
2.Fully digital temperature control
3.Automatic digital timer
4.No limit on height of mug,could turn left and right,choose the most suitable place to print
5.Be able to bear high temperature with silica gel,press equal,220℃could bear
6.The heating mat could be heated if no mug in the machine
7.Easy pressure adjustment ,Solid steel welded framework
8.An amazing 3-Year/3,000-mug warranty on the heating parts
9.Soft heater liner for accommodating inconsistent mugs
10.Temperature readout accuracy +-1C
11.User able end-of-cycle alarms
12.Color: Silver Grey



Parameter

Voltage          220V-250V
Power           300W
Temperature Range 0-220℃
Timing Range     0-999 Sec.
Diameter 7.5~9.5cm  or  5.0-7.0cm



The operation process

Step1: Place the print face down on the mug and secure it with thermally resistant tape. Place the tape on opposite ends of the print.

Step2: Slide the mug the mug press and apply pressure. Fifteen to twenty seconds later after the temperature reaches 180℃, remove the mug from the mug press.

Step3: Allow the mug to air cool at room temperature. Remove the tape when the mug is cool.



   Operation video






LDY004
