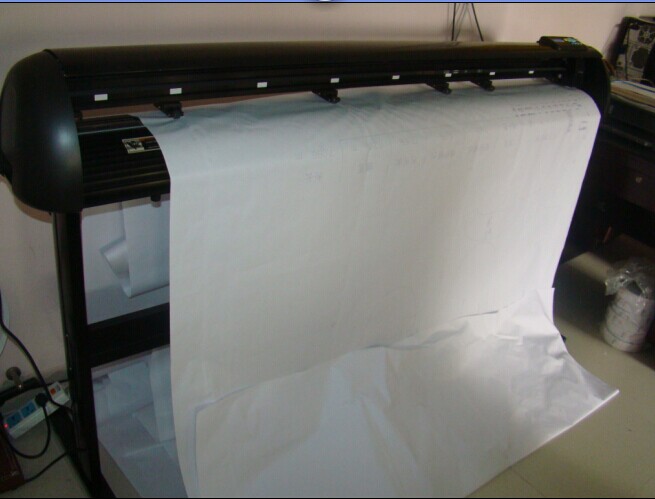

LD1600cutting plotter
Model:no Specifications:
Volume： Weight：
Description：
1. Support CAD
2. Maximum paper feed width is 1700mm
3. 6 pressure roller for more stable
1.Step motor,650mm/s max cutting speed;
2. Support CAD, max paper feed width is 1700mm;
3. 6 rollers ensure stable tracking;
Technical Parameters
Model HW1600/HS1600
Support and Paper Feed Standing paper frame
Main Board High-performance & intelligentARM 32 CPU( 200 times faster than 51 chip)
Driver High speed stepping motor, micro-step driver
Positioning Mode Precision electronic Bounded System, random original point setting
Maximum Cutting Width 1600mm
Maximum Cutting Speed 650mm/s / 1200mm/s
Maximum Cutting Length 2000mm
Cutting Force 1000g
Mechanical Precision 0.05mm
Repeatable Precision <±0.1mm
Type of Plot pen All types diameter 11. 4mm plotter pen
Plotter Instruction DM-PL/HP-GLAutomatic Identification
Power Supply AC110V/220V±10% 50Hz/60Hz
Power Consumption <120w
Noise at Work ≤75dB /≤60dB
External Dimension 1962x342x395
Shipping Weight 40kg
