Model:LDY720 Specifications: 720
Volume：1120*386*340mm Weight：26kg
Description：
LDY720 cutting plotter
Main Board | High-performance & intelligent ARM 32 CPU ( 200 times faster than 51 chip) |
Control Panel | 16*4 character LCD display, 10 silica gel buttons, easy-to-use and durable |
Driver | High speed stepping motor, micro-step driver |
Positioning Mode | Precision electronic Bounded System, random original point setting |
Maximum Cutting Speed | 650mm/s |
Maximum Cutting Length | 20000mm |
Cutting Force | 0-1000g (digital adjustment) |
Mechanical Precision | 0.05mm |
Repeatable Precision | < +-0.1mm |
Type of Tool | Steel cutter blade |
Type of Plot pen | All types diameter 11. 4mm plotter pen |
Plotter Instruction | DM-PL/HP-GL Automatic Identification |
Interfaces | USB/ SD Card / Serial port |
Power Supply | AC110V /220V±10%, 50Hz/60Hz |
Red Dot Positioning | Positioning using red dot, contour cutting function; Compatible with FLEXI8, SIGNCUT |
Noise at Work | ≤75 DB |
Features:
1. Use ARM 13 High-performance intelligent controller.
2. Exact positioning using Red Dot, with the registration mark detection to ensure accurate contour cutting.
3. Smooth operation of advanced high-speed cutting function
4. Work independently without connect to computer, high-capacity SD output interface and USB / serial port for diverse choices.
5. Strong cutting pressure, it can cut high-strength grade reflective film material

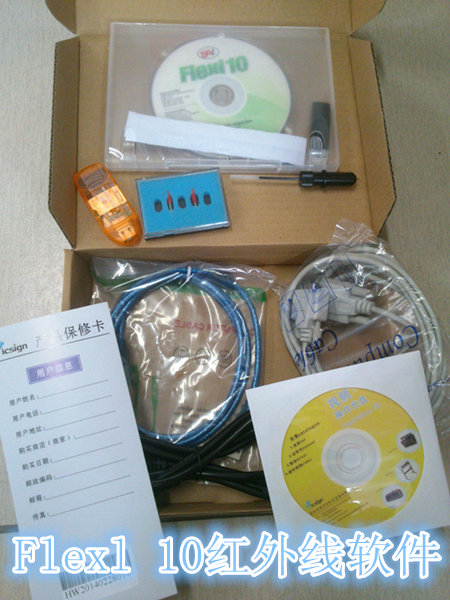

6. Flexi 10 Infra-red positioning software can be used with the cutting plotter，infrared located with 4 position to improve the engrave resolution
