Model:no Specifications: 720&850&1100&1350
Volume： Weight：
Description：
Infrared cutting plotter
Features:
1. Use ARM 13 High-performance intelligent controller.
2. Exact positioning using Red Dot, with the registration mark detection to ensure accurate contour cutting.
3. Smooth operation of advanced high-speed cutting function
4. Work independently without connect to computer, high-capacity SD output interface and USB / serial port for diverse choices.
5. Strong cutting pressure, it can cut high-strength grade reflective film material
TECHNICAL PARAMETERS:
Model | LdY720 (24 inches) | LDY850 (30 inches) | LD1100 (40 inches) | LDY1350 (48 inches) |
Media Way | M Brackets | M Brackets | Stand | Stand |

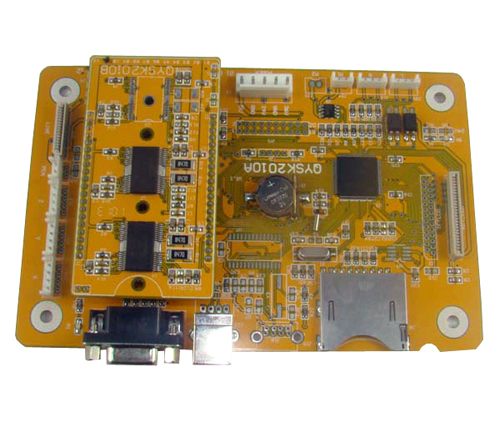

Main Board | High-performance & intelligent ARM 32 CPU ( 200 times faster than 51 chip) | |||

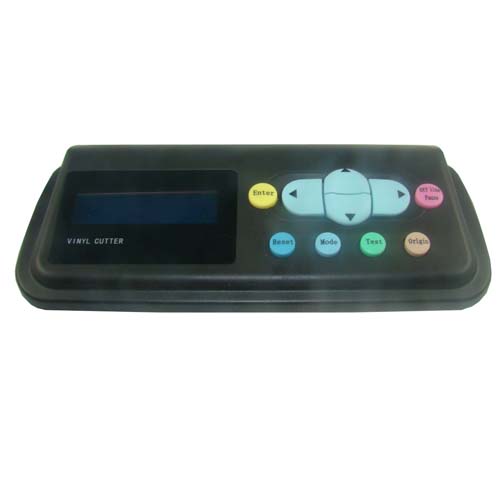

Control Panel | 16*4 character LCD display, 10 silica gel buttons, easy-to-use and durable | |||
Driver | High speed stepping motor, micro-step driver | |||
Positioning Mode | Precision electronic Bounded System, random original point setting | |||
Maximum Paper Feed Width | 720mm | 850mm | 1100mm | 1350mm |
Maximum Cutting Width | 620mm | 750mm | 1000mm | 1250mm |
Maximum Cutting Speed | 650mm/s | |||
Maximum Cutting Length | 20000mm | |||
Cutting Force | 0-1000g (digital adjustment) | |||
Mechanical Precision | 0.05mm | |||
Repeatable Precision | < +-0.1mm | |||
Type of Tool | Steel cutter blade | |||
Type of Plot pen | All types diameter 11. 4mm plotter pen | |||
Plotter Instruction | DM-PL/HP-GL Automatic Identification | |||
Interfaces | USB/ SD Card / Serial port | |||
Power Supply | AC110V /220V±10%, 50Hz/60Hz | |||
Power | < 100W | < 120W | ||
Red Dot Positioning | Positioning using red dot, contour cutting function; Compatible with FLEXI8, SIGNCUT | |||
Noise at Work | ≤75 DB | |||
