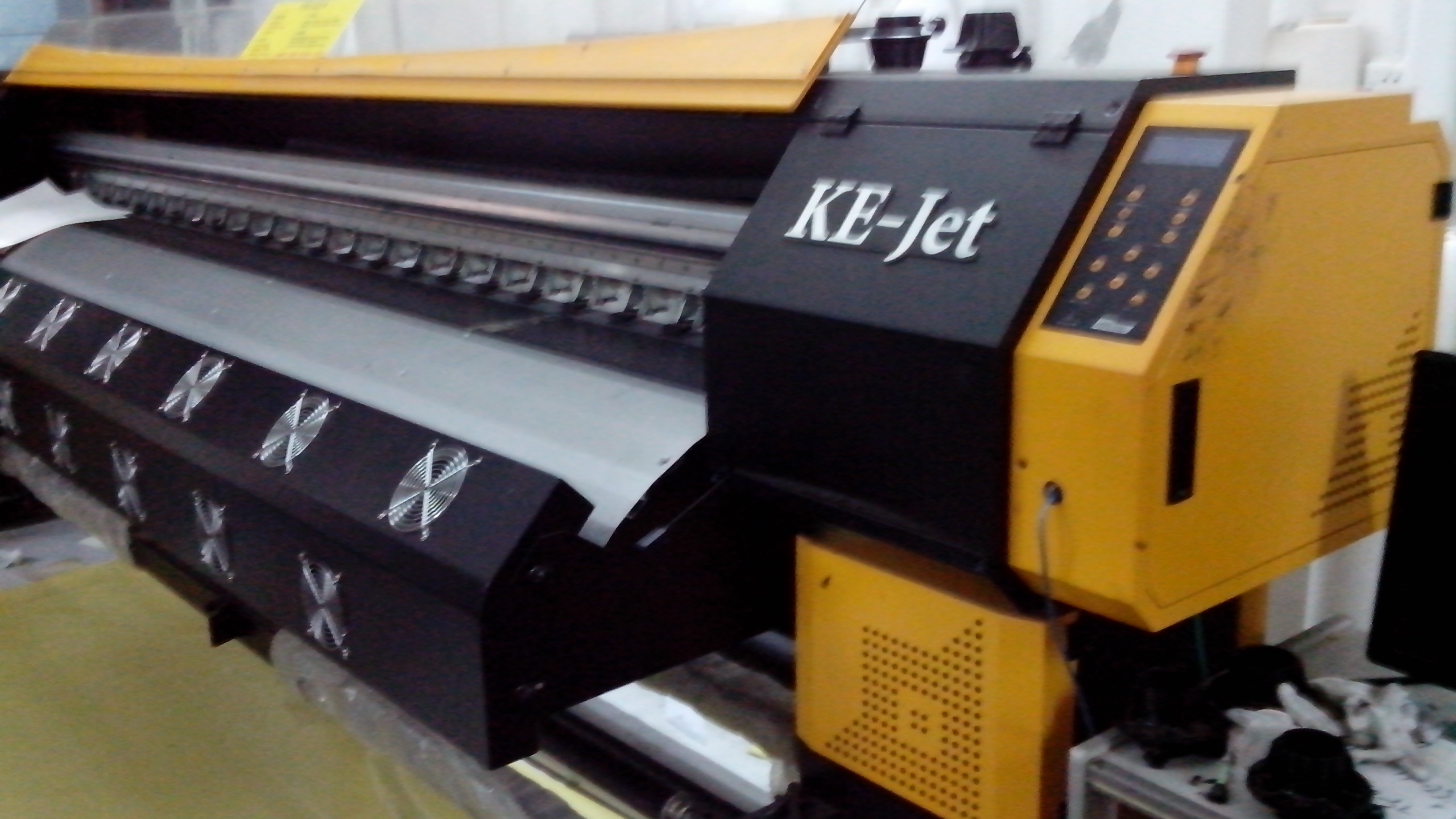

GZT3204AU/3202AU solvent printer

Model:GZT3204AU/3202AU Specifications:
Volume:4660*960*1250mm Weight:650kg
Description:
GZT3204AU/3202AU solvent printer

Introduction

◆Apply Spectra Polaris 512 35PL head made of steel with 512 active nozzles;

◆New style mechanic structure design, superstrong metal plate girde, aluminium plateform to support high speed motion and ensure printing quality.

◆Droplet to be 35PL, firing frequency to be 30-50K which is twice or four times of other large format solvent printers, GZT3202AU max speed can be 72m2/h and GZT3204AU can be 98m2/h

◆USB high speed interface for large volume data transfering, new designed taking up/feeding system to maintain long feeding;

◆Jumpp automatically when blank page printing, it can increases production efficiency and precise ink positioning improve printing effect;

◆Dge feather function can solve the banding of pictures

Specification

Item

specification

Print head

Model

GZT3202AU

GZT3204AU

Print head

Polaris35PL head

Quantity

2 pcs(10800USD)

4 pcs(15420USD)

Media thickness

2mm-4mm, adjustable

Ink

Ink color

CMYK(four color)

Ink type

Solvent ink for Polaris35PL head

Ink supply

Motor-driven pump refill ink automatically

Intelligent monitor system

automatic ink shortage detection(warn of ink shortage)

Heating

Drying system

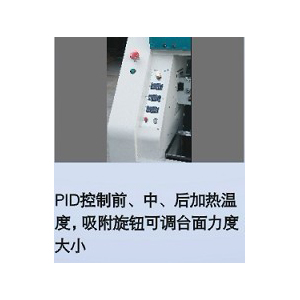

Front, middle and post heating, PID automatic control

Heating temperature

Room temperature~800C, temperature recommended: 40~650C

Airdrying system

External fan



Media



Media width

3200mm(max)

Media type

Banner, poster, flex, vinyl, car stickers and other outdoor printing materials

Media transmission

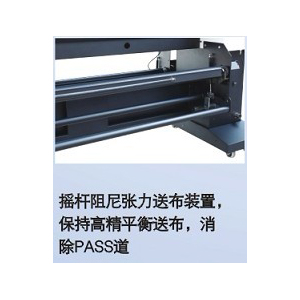

double overstriking rubber rolls sending cloth with high precision



Speed



Production mode

600*300dpi 3 pass 72m2/h

600*400dpi 2 pass 98m2/h

Photo mode

600*400dpi 4 pass 46m2/h

600*600dpi 3 pass 72m2/h

Precise mode

600*600dpi 6 pass 35m2/h

600*800dpi 4 pass 46m2/h

Print port

USB port

Temperature and humidity

temperature:180C~290C humidity: 50~80%

RIP software

Maintop /PhotoPrint

Power

AC200V-220V 50Hz

Demension

LWH: 4660*960*1250mm
