Model:HC Q7 Specifications:
Volume： Weight：120kg
Description：
1.6m DX5 eco-solvent printer
working with Eco-solvent ink , can work on banner,tarpaulin, canvas, mesh, flex and so on .
Features:
1.The upgraded version and advanced technologies in printer control system, movement system, auto clean&protect system and ink supply system.

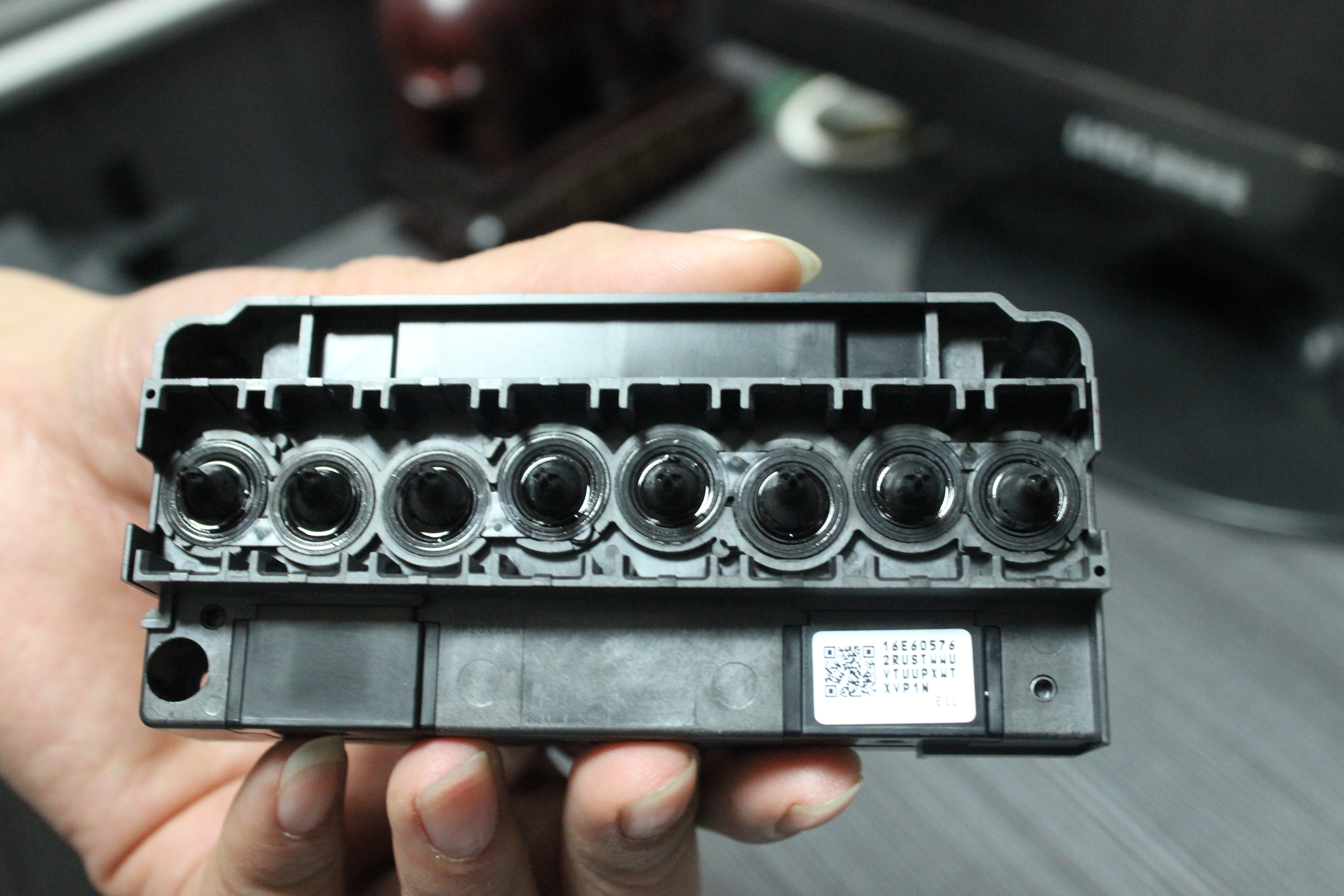

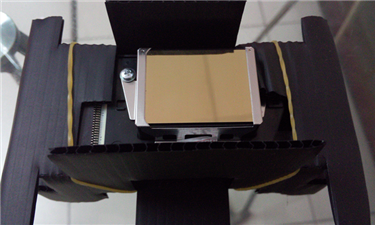

2. Epson DX5 printhead with 24.5mm width and 8 lines nozzles,Max 1440dpi. It’s intergrated print head(one head can use 4 color ink)
3. Double 4-color ink supply which outputs delicately and colorfully.
4.Nice appearance, Simple structure design, convenient operation and easy maintaince.
5.Imported HIWIN linear rail and high quality motors, more stable,,and lower noise during printing.
6.All control boards carry high quality electronic components, with solid tantalum capacitances to extend the piezocrystal lifespan.
7.Printhead can be adjusted up and down for different thickness medias.
8..Advanced variable dot print technology(VSDT), the minimum dot reach 3.5pl,maximum 27pl.
9. With automatic ink pumping and head cleaning&wipping.
10.Control program is built in Maintop RIP software, more easy operation and high compatibility.
11.Error code hints system tells you where the problem is.
12. With USB plug and play transmission interface, Speed up to 480M/s, it can support network interface and you also can print in a differenct place.
Brand | Q7-1.6m | Q7-2.0m | Q7-2.3m | Q7-2.5m | Q7-3.2m | |
Ink Cartridge | Crystal piezo ink cartridge DX5 | |||||
Head amount | One pcs | |||||
Print width | 1.56m | 1.96m | 2.26m | 2.46m | 3.16m | |
Weight | 130kg | 140KG | 150kg | 180kg | 200kg | |
Resolution | 360×720 360×1080 720×720 720×1080 1440×1440(dpi) | |||||
speed | 2 pass | 34㎡/hr | ||||
6 pass | 12㎡/hr | |||||
8 pass | 8㎡/hr | |||||
12 pass | 4㎡/hr | |||||

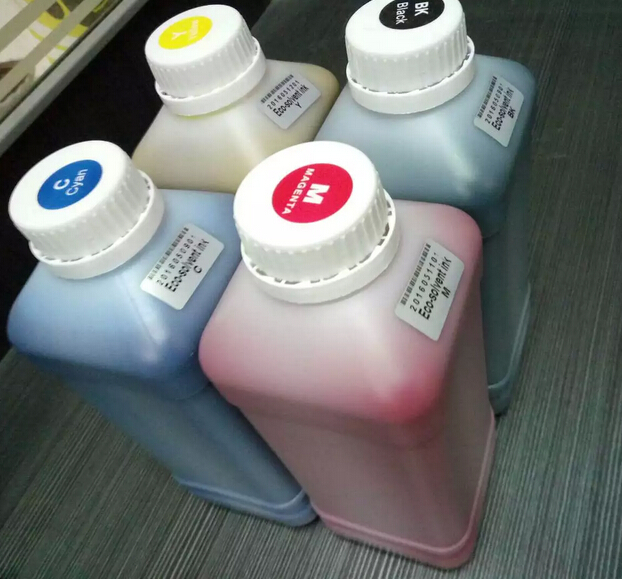

Ink | Ink type | Waterbased/ sublimation ink/ eco-solvent | ||||
Color | Four color(Y/M/C/K) | |||||
Ink tank | Each color 440ml | |||||
Ink supply | Card gate bulk continual ink supply system | |||||
Media | Media width | 1600mm | ||||
Media type | outdoor PP paper, PVC sticker, vinyl, one way vision, banner etc. | |||||
Head height | 1.5～3mm adjustable | |||||
Heating | Inserted intelligent heating system( mid heating, back heating with wind drying to be optional) | |||||
Media absorbing | Several parts, intelligent media wind absorbing system | |||||
Media feeding | Yes (media max weight: 40kg) | |||||
Head cleaning | Auto cleaning, anti-clogging, moisturizing of ink catridge | |||||
Media clamper | yes | |||||
Media take-up | No(optional) | |||||
Print port | USB2.0 | |||||
RIP sotware | Maintiop、Photoprint | |||||
Power | AC220V,50Hz/60Hz | |||||
Demension | Carton packing, 2460×550×480(main body); 840×530×230(part) | |||||
Perfect image:
1. Professional linear guide slide rail design can ensure the printing precision greatly;
2. Vertical raster will keep clean for a long time and reduce abrasion;
3. Step media system prevents pass lines effectively;
4. Special appearance and structure not only pratical, but also fashion;
5. New control system will keep printer work stable, even at a high speed.
