The Laser Seal machine is proper for many seal materials such as plastic ,organic glass,ox horn,wood ,slab and so on. It can be used to engrave all kinds of seals conveniently and rapidly.

Improved:

1.laser power supply upgrade

Successful implementation of high power, long life, stability and strong performance, plus cooling dehumidification equipment bellows, so that power both in the North and South can ensure stability.

2. Motherboard Upgrade
USB board with SMD

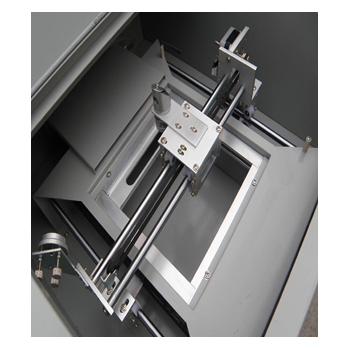

3 plotter upgrade (working platform)
Original two-way rail mold Secretary to make more precise carving and bumps are not afraid of transport.

4. Chassis Upgrade
Thick steel chassis, making the machine more stable, power lines, print lines, pumps, fans and other holes are in the back of the machine, to save time and ensure security (jack in the side of the man likely to cause collisions).

5. Security Guard
All the machine parts are installed safety guard circuit to ensure the safe operation of the machine.

6. Lights
Installation of LED lighting, easy operation and energy saving.

Usage:
Small area processing: color plates , wood , bamboo , orangic glass ,cloth

Carved in the electronic device name, type, logos, designs, very permanent.

Specification:

1.Model:LDLS(demension:96*62*48cm)

2.CE approved, water-cooling as protection

3.working area:18*18cm(can max put 25*25cm material to be engraved)

4.laser power:40W(Gross power:200W)

5.Speed:600mm/minute

6.accuracy:0.01mm

7. Min. shaping character (EN, CN): for English letter 0.8mm; Chinese character 2mm

8. Communication interface:USB
9. Warranty (device, parts): one year warranty for the main boards, not include the laser tube etc.
10. Supported graphic formats:BMP,PLT and other files output by photoshop or Corel Draw.

11. Supported operating system: XP, VISTA 32, VISTA 64, windows7
12. Software supported: you can use Corel Draw or CAD or Photoshop to deal with pictures and then use Moshi software(Moshi Authorized software in the CD+ dongle with USB port) for engraving.
