Model:LD-K-Jet320 Specifications: 4700L*1050W*1140H(mm)
Volume： Weight： 640KG
Description：
12 improvements !
Y axis crossbeam becomes wider

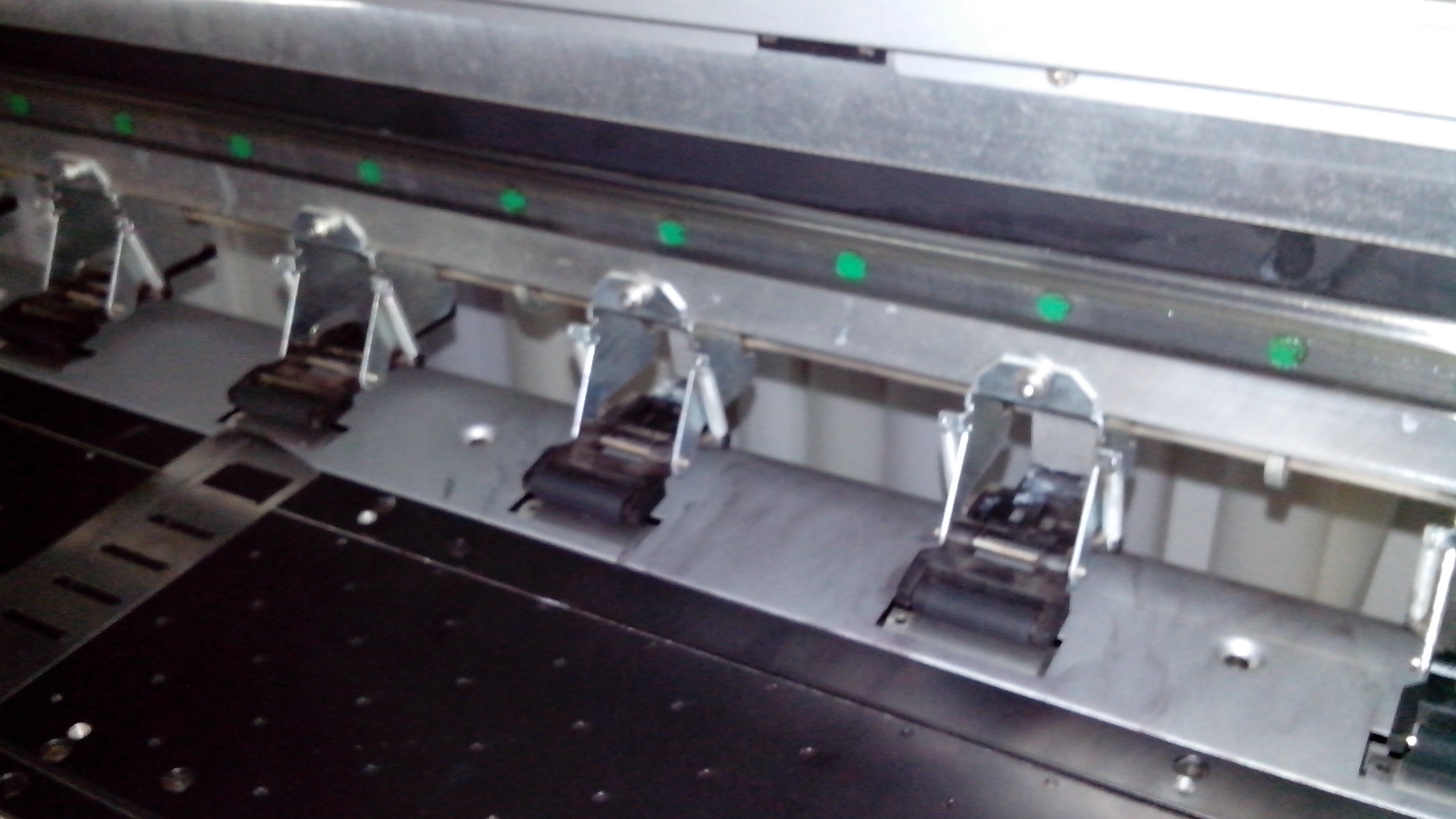

Numbers of pinch roller increase from 14 to 21
Add the LED lights
Preheat platform changes from rhombus to circular arc
Taking up system with motor
Release system without motor
Width of print platf
Resolution & Speed | High quality model: 720×1440dpi 25m2/hr Standard model: 360×1440dpi 50m2/hr High speed model: 360×720dpi 80m2/hr |
Print head | Dual EPSON DX5 print heads Minimum 3.5 pl variable ink-drop nozzle Auto suck ink, ink suck protect system |

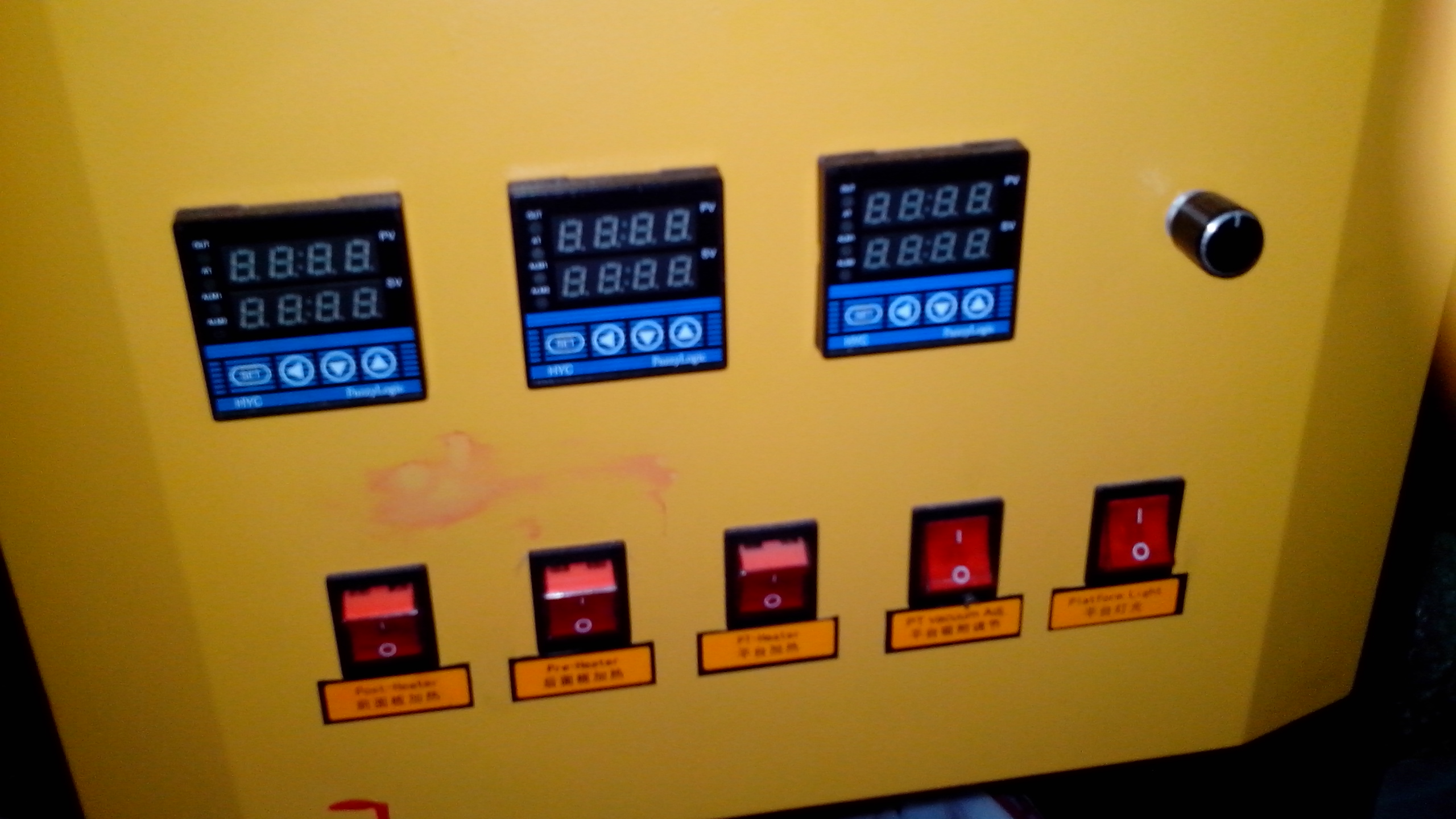

Feeding system | Release media automatically, optional tension system Pre heater, Platform heater Post heater & dry fan, IR heater (optional) |
Media | Modalities: Roll to Roll media Specification: Max width 1.8 meters, unlimited length Classifications:Banner, sublimation paper, PE, PP, ABS, PU, Vinyl |
Inks | 4 colors or 6 colors, apply for eco-solvent, water-base and dye sublimation ink |
Print format | PDF, PS, EPS, TIFF, AI etc. (RGB/CMYK) |
RIP | PhotoPrint, Seeget, MainTop |
Environment & power | Temperature: 20-30℃ Humidity: 45-75%RH Gross power5.5KW |
