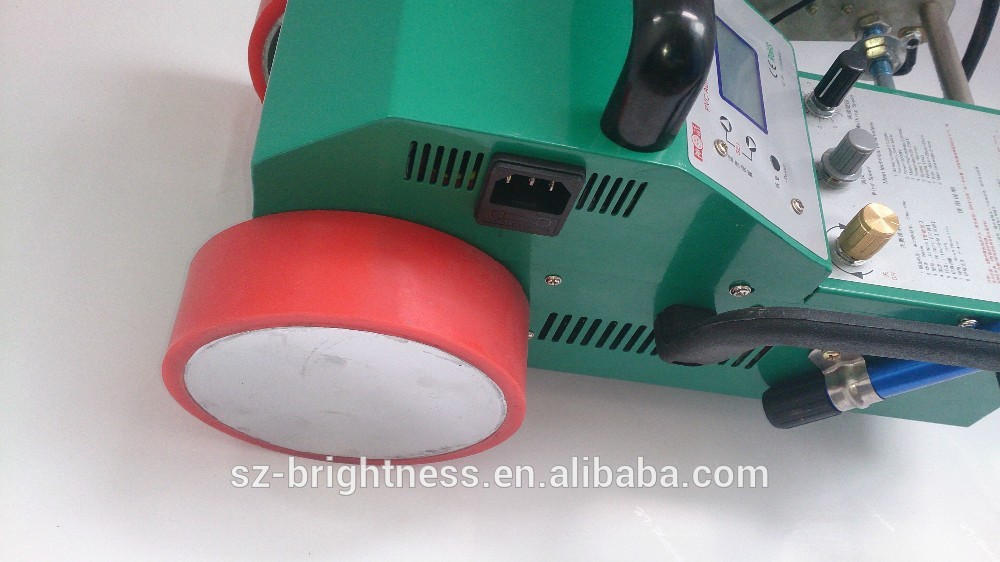

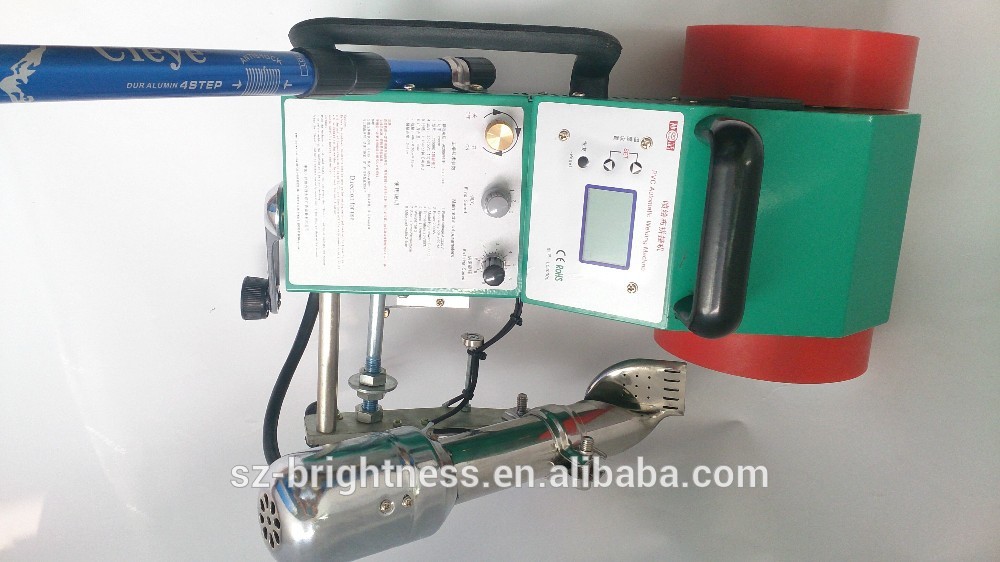

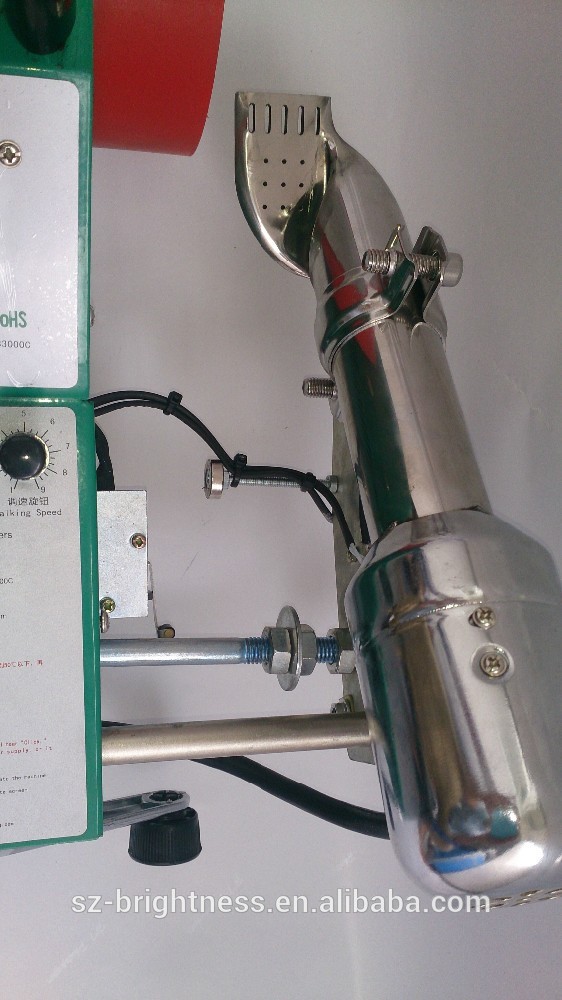

Model:LD-3000C Specifications:
Volume：58*38*38CM Weight：19KG
Description：
LD-3000C is designed professionally for seaming PE, PVC and painting banners.Temperature and speed separate control,easy to operate,high performance hot air overlap welding machine,apply in welding indstry cloth and outdoor banners.
Technical date
| Voltage | 230V |
| Power | 1800W |
| Frequency | 50HZ |
| Temperature | 40-700C° |
| Speed | 0.8-9.5m/min |
| Welding width | 0.2-3mm |
| Size | 58*38*38CM |
| Weight | 19KG |
| Certificate | CE |
Functions
1.Fastest speed more than 10m/min,could reach 15.2m/min.
2.Lifting gear,easy to move,ease operator's work.
3.Carbon brush replaceable,reduce maintenance cost.
4.Brand new interface design,easy to understand,microcomputer data momery.
5.Unique welding pressure balance gear make welding best.
6.Unique pause key and instant recovery design,save much electricity and power energy.
7.Weld with transparent reinforce tap,reeve welding,over edge welding could all carry out by changing the spare parts.
8.Guide wheel make the welding perfect without adjust during working.
Applications
*Apply to weld HDPE,LDPE,PVC,EVA,ECB,PP and all other kind of hot melt material
*Be widely used in welding indstry cloth and outdoor banners.
