Model:TOP-2000B Specifications:
Volume：59*39*35cm Weight：14kg
Description：
Welding and joining separate pieces made of some hot melting materials, such as PVC fabric, PE canvas, outdoor poster banner, textilene, plastic pieces, and so on. It is also used to laminate and hem the margin in edge-works of the pieces
Operation:
1.Make the cloth for seaming flat and put it underneath.Fix both ends by adhesivetape or something else.
2.The overlap width of the two pieces is about 3-mm, the width of the nozzle ofhot seaming machine.

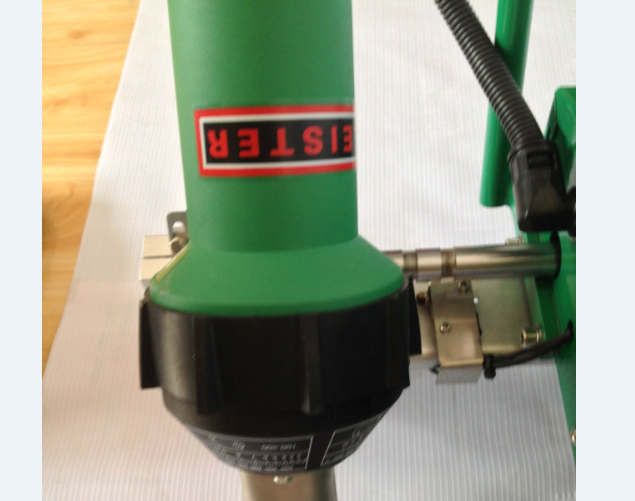

3.Put the machine nozzle between two overlap pieces.The press-wheel should be atleft side of nozzle.The nozzle also need align with side of upper piece ofcloth.
4.Switch on the motor power and then adjust speed.
5.Turn on the movement switch.

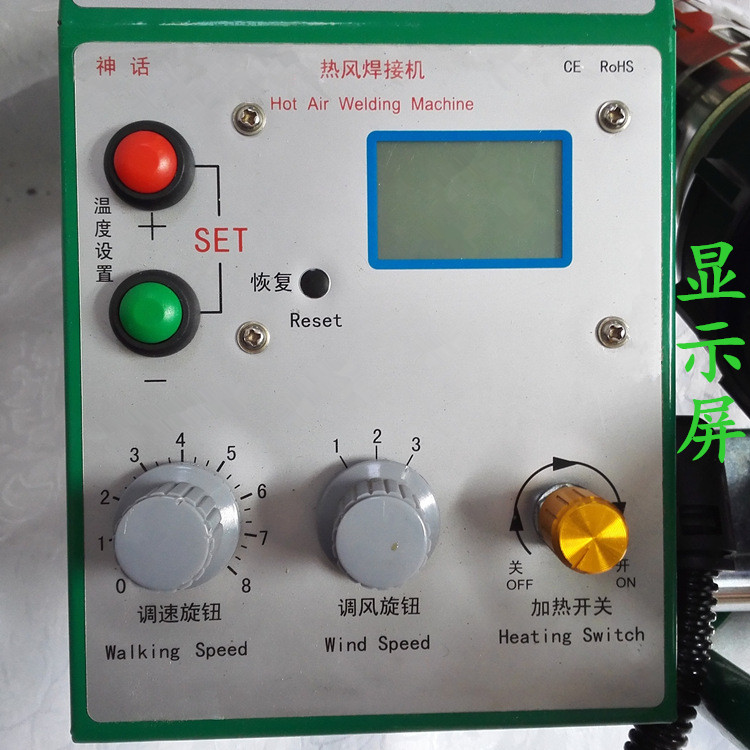

6.Press heating power key to adjust temperature.
7Turn the bar by anticlockwise to fix the position to startup automaticmovement.The machine will go along with the overlap path by itself.
8.Turn the bar by clockwise to cease the automatic work.
9.The operator should control the moving direction and make sure the nozzleconnect both with upper and under piece of cloth.
Specification:
Electric heating:1600W
Motor:15w
Voltage:220V/230V
Frequency:50/60HZ
Temperature scope:20-600 Degree
The thickness of material to be weld:0.2-2mm.
Welding Area:3cm
Working Temperature:400degree(normally)
Specification: L:50cm, W:30cm, H:28cm
Net weight:14kgs
Gross Weight:19kgs
Packing size:59*39*35cm
Package: Hard plastic case with carton outside
